Z1LW – LIGHTWEIGHT UNIBODY
POWER VALVE

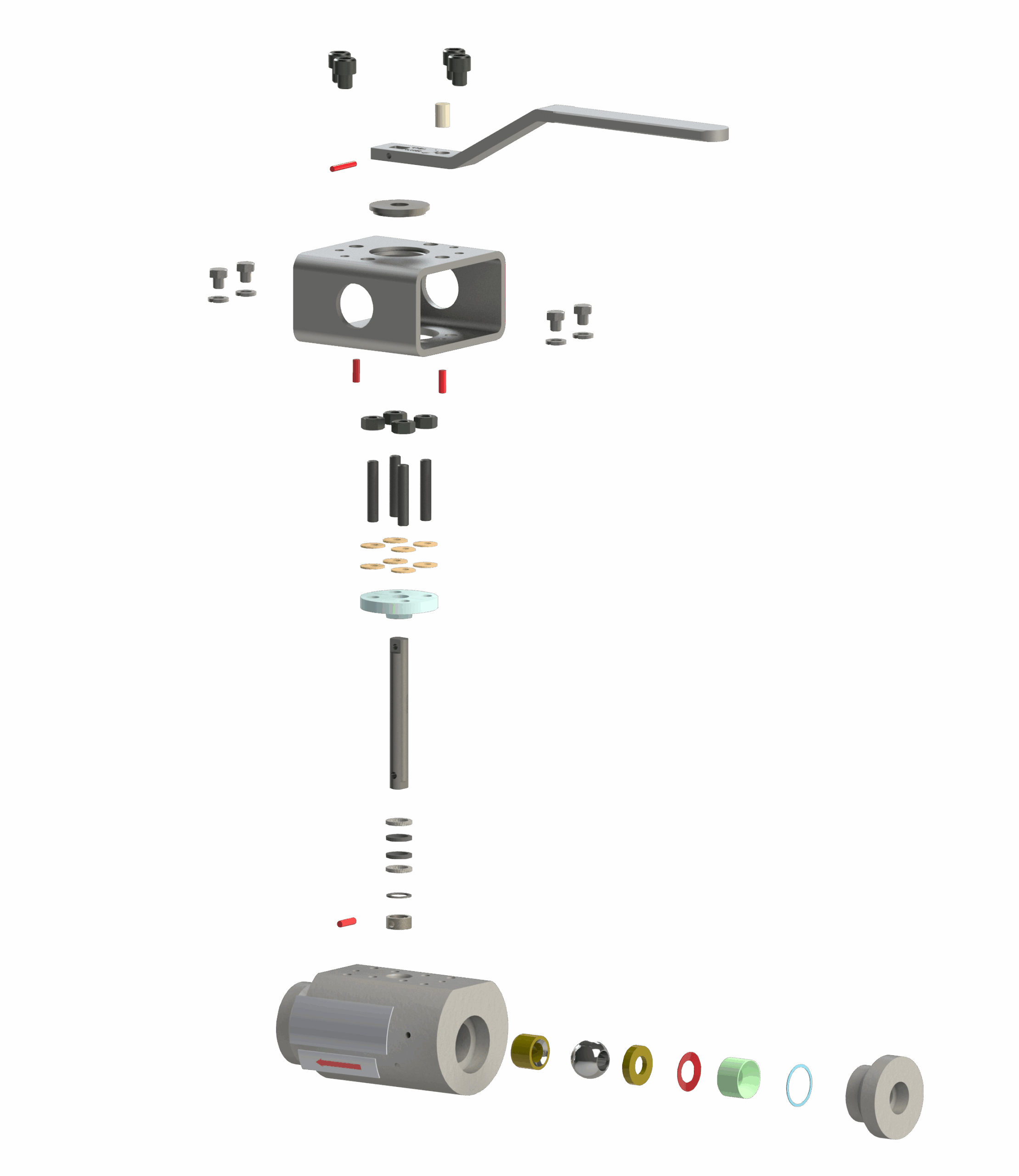

2024 Z1 LW Feature 整体剖视图

Adapter Bushing
provides stable
stem support

Blowout-proof Stem

Pressed-in
downstream seat

Ball and seat are
mate-lapped for zero
leakage shutoff

Compact body design

Belleville spring
(Inconel 718) provides
constant mechanical
seal allowing for thermal
expansion

ISO universal
mounting
bracket

Optimized flow paths

Available with
SW ends

Description

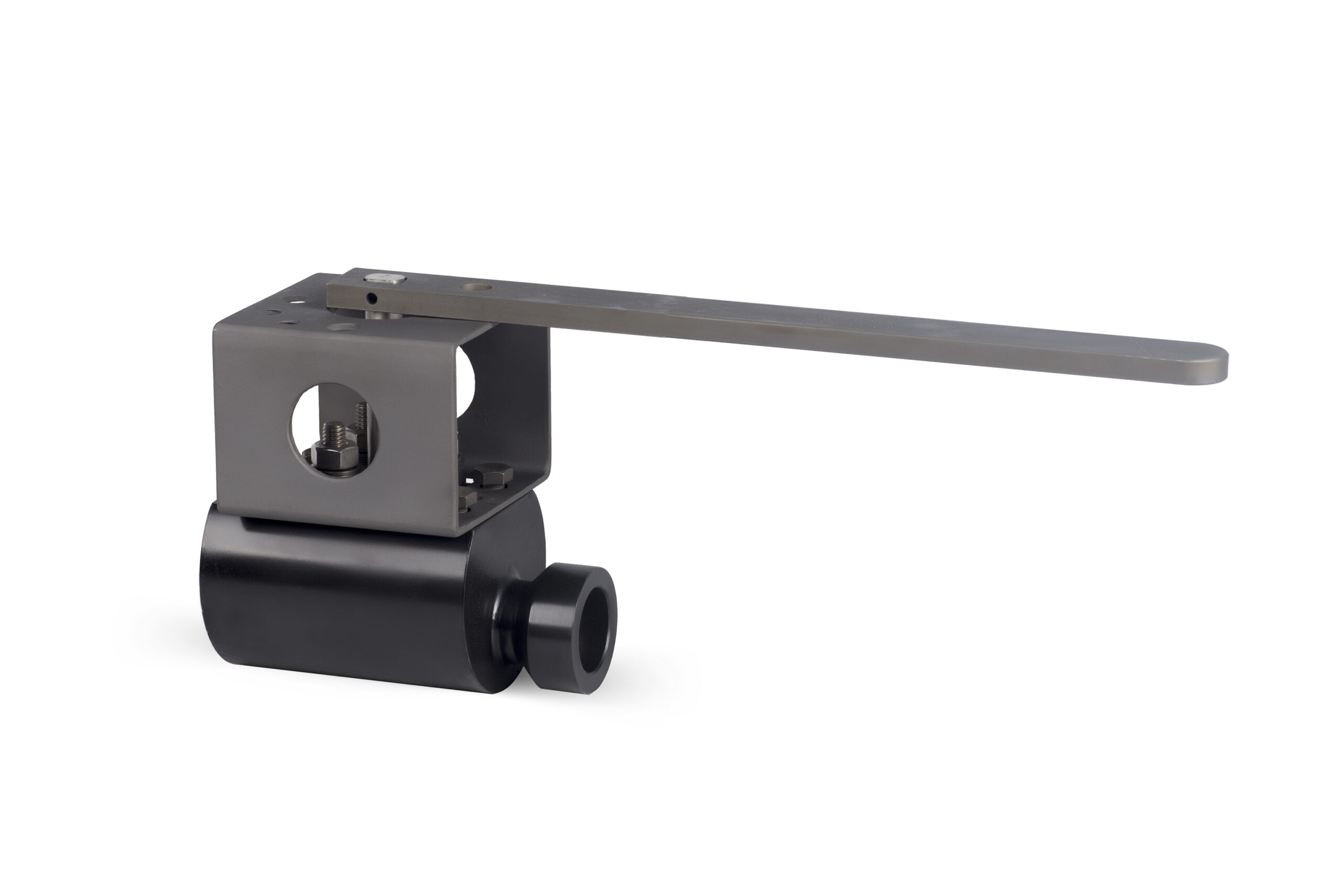

The Z1LW Lightweight Unibody Power Valve is a one-piece, metal-seated ball valve engineered for dependable zero leakage performance for superheated steam in high pressure, severe-service applications, including power generation and critical on/off applications. With an integrated socket-weld end, the compact design of the Z1LW weighs 50% less than typical flanged valves of the same pressure class.

  • 0.40″ to 1.00″ Bore Sizes
  • 0.50″ to 1.00″ NPS SWE
  • 150 to 1500# ANSI Classes
  • Design Meets ASME TDP-1 2006 Bore Requirements
  • Materials: A105, F11, F22, F91, and 316SS
  • 4-Year Limited Warranty
  • Scribe Line on Stem to Indicate Mechanical Position
  • Live-Loaded Stem Packing for Reduced Maintenance
  • Two-Piece Die-Formed, Two-Piece Anti-Extrusion Stem Packing
  • Integrated Socket-Weld End
  • Blowout-Proof Stem Design
  • Pressed-In Downstream Seat
  • HVOF Chrome Carbide Coated Ball & Seat
  • One-Piece Forged Barstock Design with Customizable Connections
  • ISO Universal Mounting Bracket
  • Steel Pins – Prevents Side-Loading Bolt Stress
  • In-House CNC Machining
  • Optimized Flow Paths
  • Spring-Loaded Upstream Seat for Constant Seat Loads
  • Mate-Lapped Ball and Seats for Zero Leakage Shutoff
  • Metal-to-Metal Sealing for Class VI Shut-Off
  • Adapter Bushing – Provides Stable Stem Support and Smooth Operation
